Server Room Air Conditioner Management System
Server Room Air Conditioner Management System
Detail

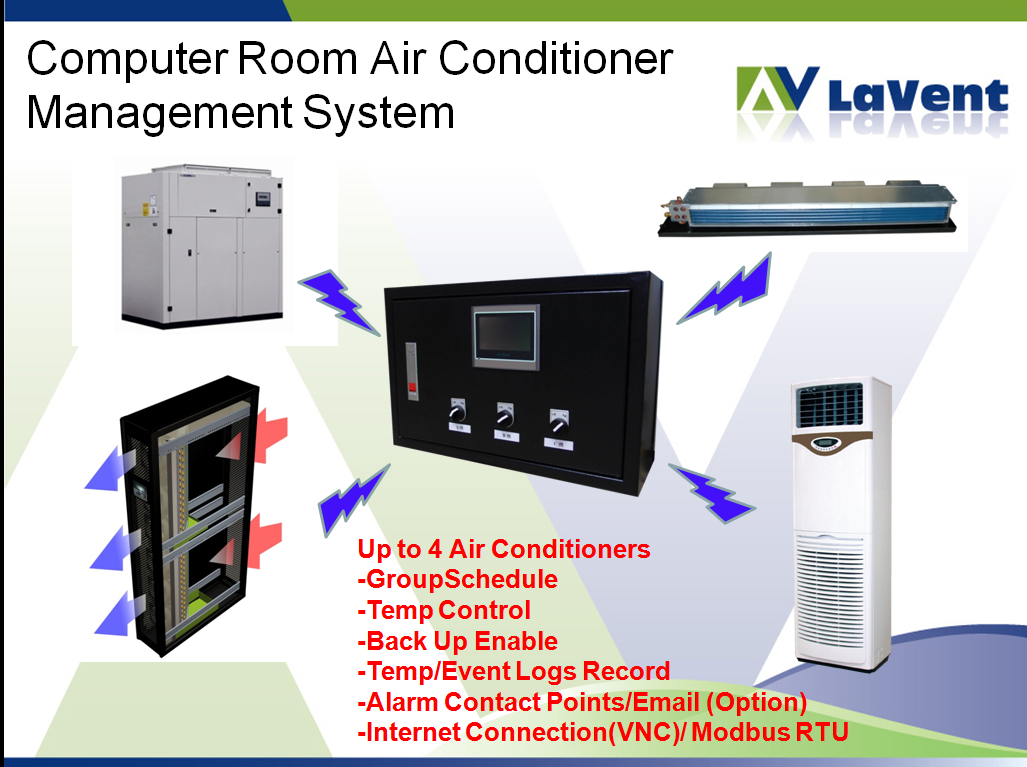

Computer Room Air Conditioners Automation System
Made in Taiwan
Enpowerd by Siemens
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller


Target:
Data Collection and Management for Computer Room/Server Room
- Enbeded in Siemens Automation Controller / Touch Screen Interface
- Internet Connection (Support VNC)
- Manage Up to 4 Sets of Air Conditioners in Server Room/ Computer Room both in Schedule and Temp.
- Air Conditioners Scheduling (Single Schedule/ Group Schedule)
- Support Air Conditioners Back Up Automation (When one is broken, enable Back Up Air Conditioner(s))
- Support Air Conditioner Err DI input. (When Air Conditioners System Error ( High or Low Pressure Error))
- Support Air Conditioner Operating Feedback DI input. (When Feedback message is not right, Alarm On)
- Real Time Temp. Trend Recording / History Temp. Reload (Specify History Date/Timing)
- Temp. including Cold Aisle Temp. / Hot Aisle Temp. or other appoint Temps.
- Event Log Recording / History Event Log Reload (Specify History Date/Timing)
- Event including (On/Off, Broken, Temp Hi Enable Back Up Air , Feedback Error, Alarms...)
- Alarms (Dry Contacts) - Air Conditioner Broken / Temp. Super Hi / Fire Alarm / Cold Aisle Temp. Hi...
- Support Modbus RTU
- Option (Support Email Alarming, Online Web-Based Management)
- .... Contact for more information
-Email:ken88chiang@gmail.com, -Cell:+886-936115966, Office TEL:+886-2-82627166

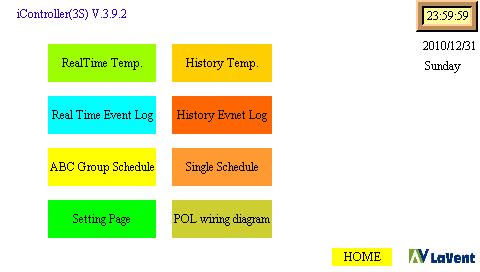

Operation Screens

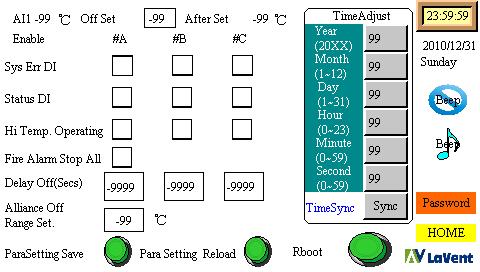

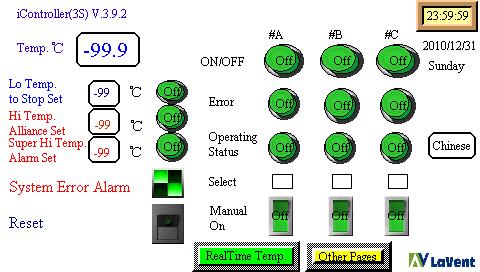

Server Room Air Conditioner Management System Server Room Air Conditioner Management System Setting
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

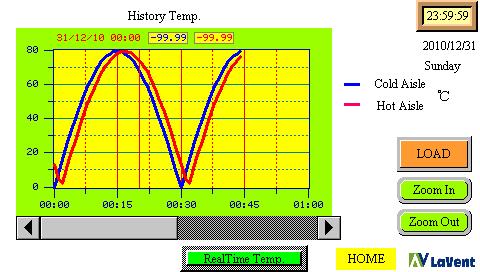

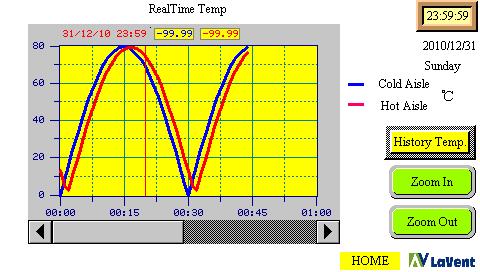

Real Temp. Recording History Temp. Reload
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

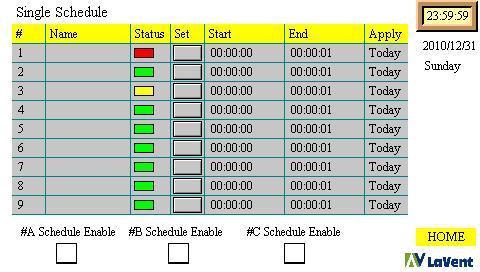

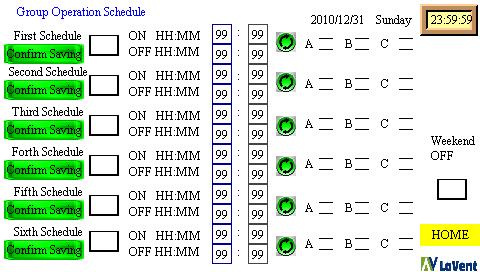

Group Scheduling Single Scheduling
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

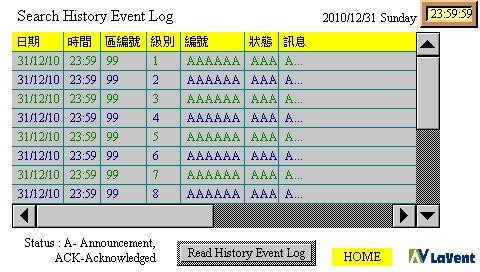

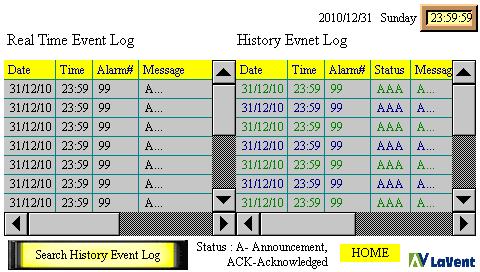

Event Log Recording History Event Log Reload
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

Other Pages Wiring Diagram
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

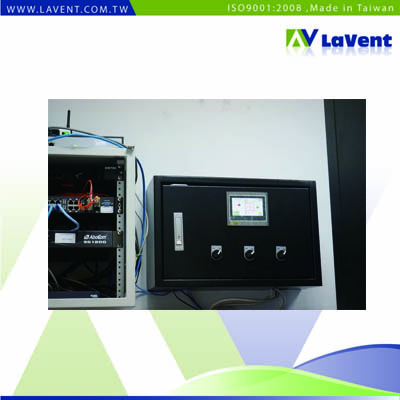

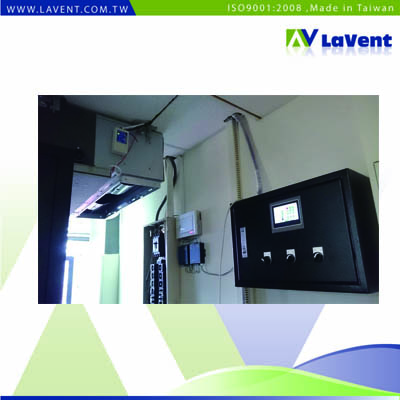

Successful Case Studies:
Taiwan Organic Food Chain Company Server Room.
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller -6 Racks with Cold / Hot Aisles
-3 Air Conditioners in Server Room
- 2 Wall Mount Air Conditioners +1 Fan Coil Air Conditioner

-Group Schedule: 16 Hours/ Each Air Conditioner
-Temp. Setting:
Reach Hi-Temp. --- Call Backup Air Conditioner to Operating ;   Reach Super Hi-Temp --- Send Super Hi Temp. Alarm
-Alarm:
-Water Leaking Alarm  ; -Air Conditioner Error Alarm ; -Super Hi Temp. Alarm
BY Short Message, Email (Option)

Taiwan Machinery Company Server Room.
computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller -3 Racks with Cold / Hot Aisles
-2 Air Conditioners in Server Room
- 2 Fan Coil Air Conditioners

-Group Schedule: 12 Hours/ Each Air Conditioner
-Temp. Setting:
Reach Hi-Temp. --- Call Backup Air Conditioner to Operating ;   Reach Super Hi-Temp --- Send Super Hi Temp. Alarm
-Alarm:
-Water Leaking Alarm  ; -Air Conditioner Error Alarm ; -Super Hi Temp. Alarm
BY Short Message, Email (Option)

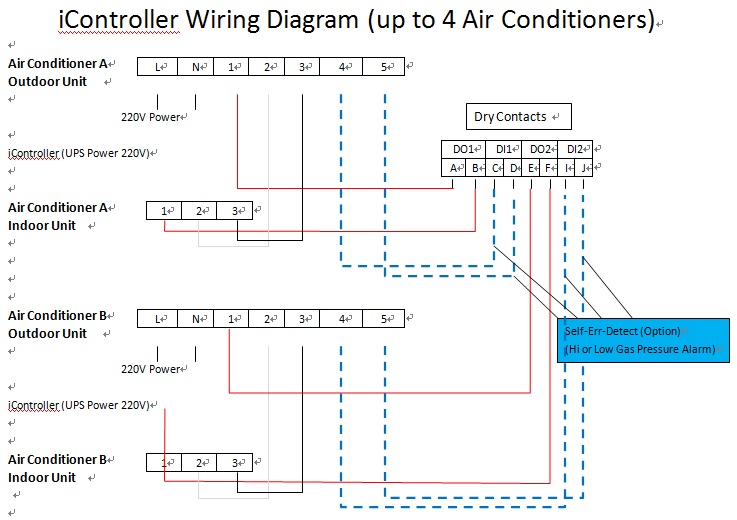

iController Wiring Diagram:
-Can Control serveral types of Air Conditioners - Wall Mount/ Fan Coil/Floor Standing / InRow/ CRAC

computer Server Room Air Conditioner automation Management System computer room temperature control, themostat, intelligent temperature controller

DETAIL SPEC :
Controller Enbeded Siemens PLC Controller
Interface 4.3" Touch Screen
Number of Air Conditioners Controlling 2-4 Air Conditioners,
More than 5 (Including) Need to custom Made
Schedule Both Single Schedule and Group Schedule
Temp. Control 3 levels of temp setting & controlling
Low Temp- Stop ALL Air Conditioners
Hi Temp- Call BackUp Air Conditioner to ON
Super Hi Temp. - Send Alarm signal out by dry contact, email
Temp. Sensors 2 Temp. Sensors, each sensor with 6 meters long. One for Cold Aisle and the other for Hot Aisle
Temp. GRAGH Real time Trend Graph/ History Graph
LOG Real time log & History log
Internet Connection Yes, Support VNC or Web Based Application (Option)
Modbus RTU Support
Power 220V/50 or 60 HZ

  Contact for more information
-Email:ken88chiang@gmail.com, -Cell:+886-936115966, Office TEL:+886-2-82627166, www.tx-taixin.com.tw; www.lavent.com.tw
